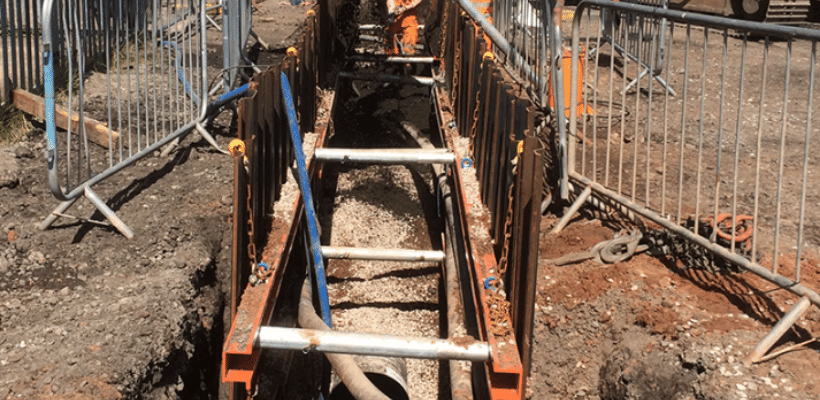

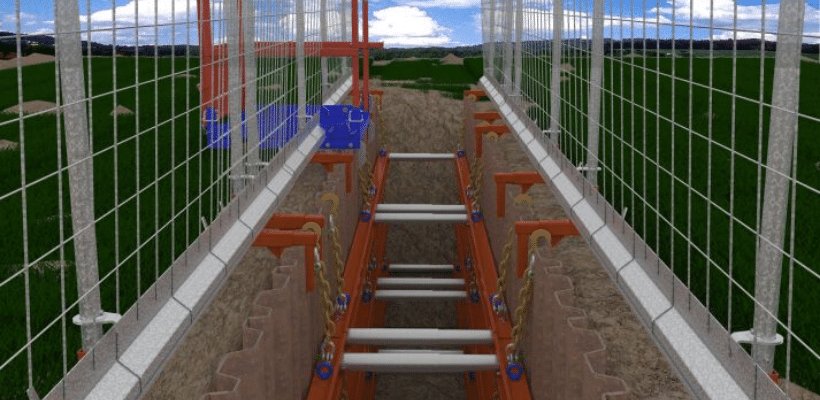

Altrad RMD Kwikform's Lite Waler is designed to be used in conjunction with steel trench sheets for the safe support of excavations.
Got a question? Get in touch to speak to one of our specialists
Faster
Pinned connections allow for faster assembly (no bolted connections).
Safer
Separate eye-bolts on the walers for lifting & suspension points allow for safer installation.
Easier
Tee pins designed for ease of handling.
Key features
-
No Bolted Connections
Hydraulic Struts simply pin into aluminium walers, reducing labour requirements. -

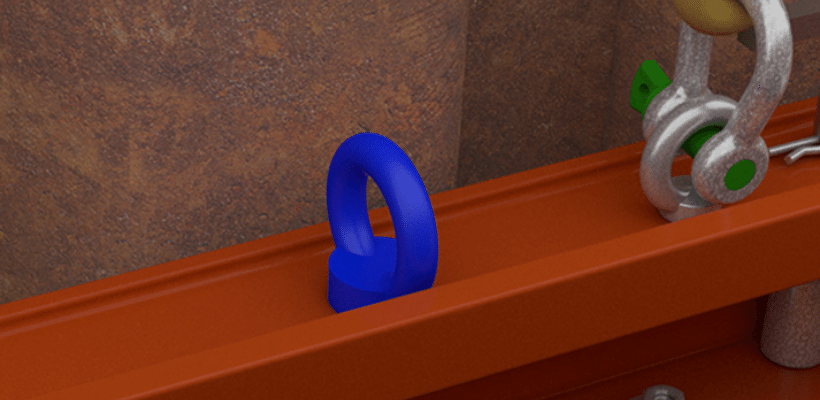

Integral Lifting & Suspension Eyes
Means that frames can be suspended on the crane until they are safely attached to the sheets with restraint chains. -
European Standard Compliance
Altrad RMD Kwikform's Struts & Walers are fully European Standard compliant, designed and manufactured in accordance with latest standards EN14653, EN1090 and carry the quality CE mark. -
Range of Strut and Waler Sizes
Struts are supplied in 6 different lengths of strut assemblies *types A-F) and 5 different lengths of aluminium walers with simple pin connections making them easy to assemble. -
Fine and Coarse Adjustment
Each of the props have a 310mm stroke hydraulic cylinder however the longer 3 struts have an extending trunion end to give an additional 300mm of adjustment.
